Change the projected coordinate systems units in Surfer (Feet, Meters, Kilometers)

Changing Your Surfer Map's Coordinate System Units

Units are fundamental in spatial data. Geographic coordinate systems use degrees (latitude/longitude) for the Earth's curved surface. Projected systems, like State Plane, use linear units such as feet or meters for flat, localized measurements. The unit choice depends on the projection and desired accuracy.

Changing your coordinate system units in Surfer is a straightforward process that ensures your map displays accurately in your preferred measurement. Use the following steps to update your projection from meters to feet, or to any other supported unit.

1. In the Contents window select the layer you want to update the units for(e.g. Contours).
2. In the Properties window, select the Coordinate System tab.
2. In the Coordinate system field click the Set button.

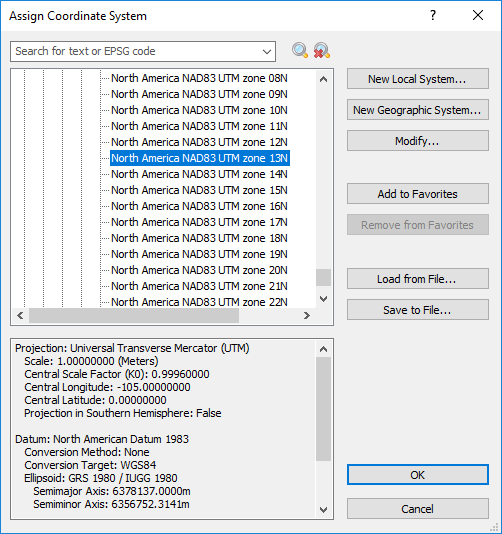

3. In the Assign Coordinate System dialog, select the coordinate system you want to change.

4. Click the Modify button.

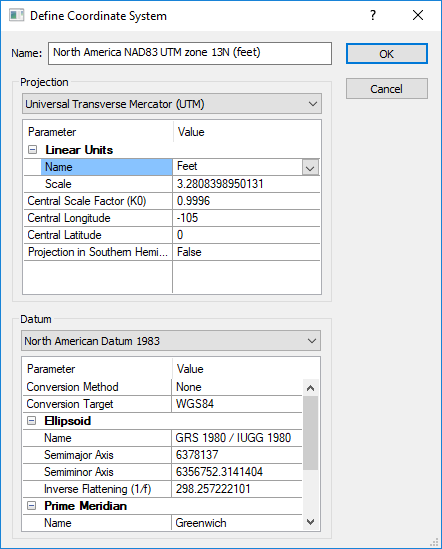

5. In the Define Coordinate System dialog, set the Name of the Linear Units to Feet (or whatever units you want) in the Projection section.

6. Change the name of the coordinate system to indicate the new units.
7. Click OK.
8. If this coordinate system is listed under Custom, click the Add to Favorites button to list it under your Favorites so you can use it in the future without recreating it.
