Surfer uses a grayscale colormap when contour fills are enabled. To modify the default colormap used, follow the steps below.
Changing the default colormap requires a Color Spectrum (CLR) file name and path. To save a preset or custom colormap to a CLR file, click Save in the Colormap Editor.

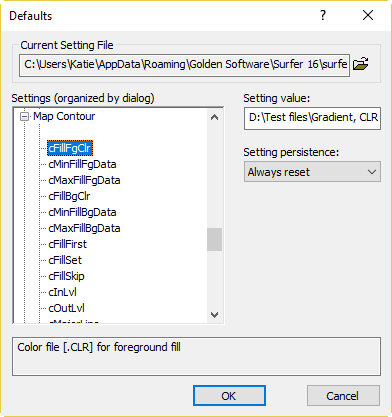

- Click File | Defaults.
- In the Settings section, expand the Map Contour section.
- Select cFillFgClr.
- In the Setting value field, enter the full file path to the CLR file you wish to use. For example: C:\Program Files\Golden Software\Surfer\Rainbow6.clr.
- Change the Setting persistence to Always reset.
- Click OK.
- Click Yes to save the changes to the Surfer.set file.
To return Surfer to the original default, follow the same steps but enter Internal Default in the Setting value field.
